Where Is The Furnace Control Board Located. Bryant & carrier control boards; When heat is needed, the control board opens the gas valve for the burners and awaits an immediate.
A faulty limit switch a limit switch is located under the furnace’s hood and has the function of telling the furnace’s blower when to go on and when to turn off. Take a look at the control board. If it determines something is wrong, it shuts the furnace down to protect itself and you.
If You’re Unable To Locate Your Hvac Control Board Or Are Uncomfortable Doing So, Please Contact A Certified Hvac Technician In Your Area For Additional Assistance.
When the home’s thermostat calls for heat, the furnace goes through a timed ignition sequence that is initiated when the circuit board sends 120 volts of alternating current to the furnace’s draft inducer fan motor. With the help of a neighbor, i just installed a new blower motor on my furnace. Goodman & janitrol control boards;
In Most Cases The Control Board Can Be Found At Your Furnace Or Air Handler.
Here's what i'm looking at: Find those wires and make a note of where they plug into. The hot surface furnace ignitor is located in the burner assembly.
Once You've Located The Diagram, You'll Want To Look For This Symbol.

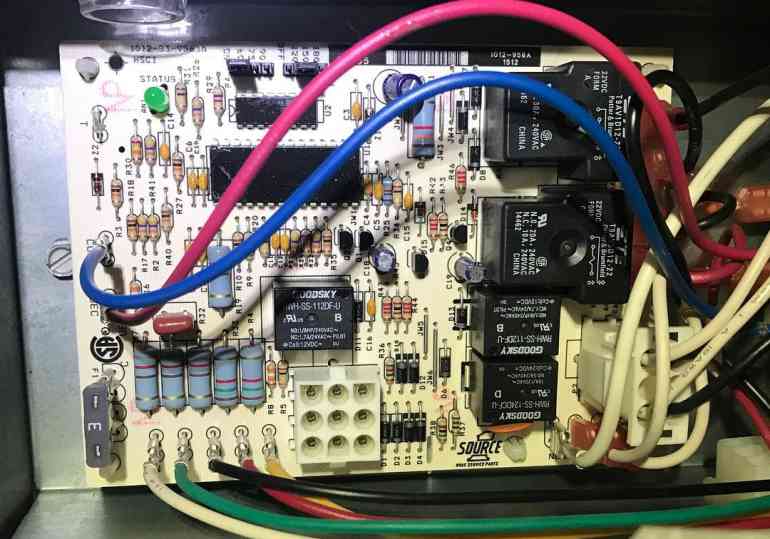

You can easily find it when you lift off the front panel. American standard trane control boards; Typically, it will be on the inside of the access cover.
When Heat Is Needed, The Control Board Opens The Gas Valve For The Burners And Awaits An Immediate.
This board integrates both the ignition control with the blower control all as one board. If the igniter fails, the furnace’s burners can’t light. Where is my furnace/hvac control board?
If The Pressure Switch Is Closed, Where Power Can Pass Through, The Ifc Will Stop The Process And Try Again.
Modern furnaces are complex machines with various components and parts linked to their brain, the furnace control board. With such an illustrative guidebook, you’ll have the ability. In the meantime, it will go into lockout mode.
